Parking Areas
Reliable emergency lighting for underground and multi-level parking facilities, ensuring safety in low-light conditions.

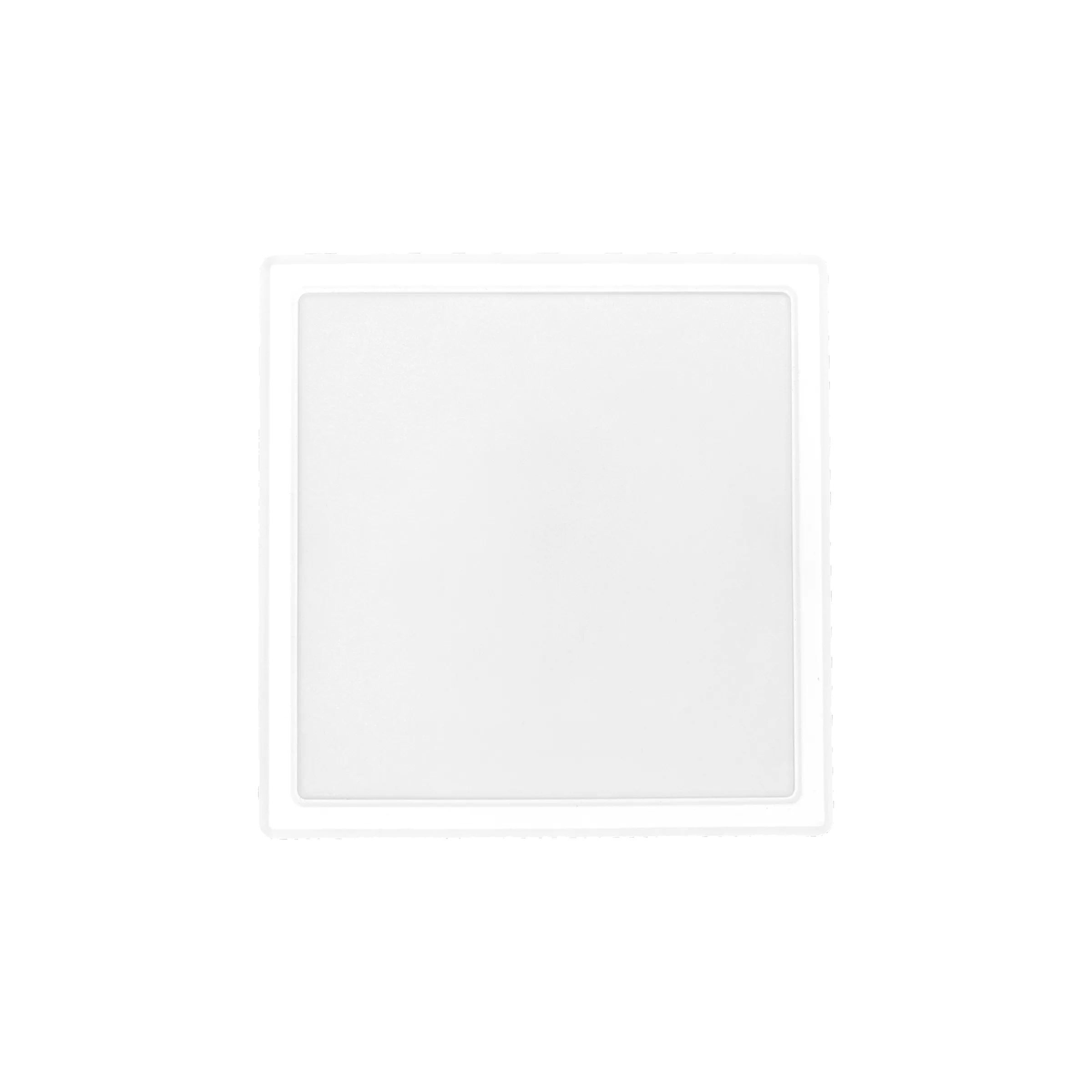

The Tulip Plus elegantly blends sleek design and advanced technology in a surface-mounted light that does more than just illuminate. This smart fixture features a motion sensor that optimizes energy use by lighting up fully when needed and dimming to conserve power when it’s not. Crafted for durability with a polycarbonate housing, it offers both visual comfort and robust protection against elements. Ideal for various settings, the Tulip Plus enhances spaces with intelligent lighting, ensuring both efficiency and longevity.
Surface Mount
175-275V / 50 Hz
230V, 79.5mA @FULL,230V 17.7mA @DIM 50Hz
18W@FULL / 3.6W@DIM
LED light will be at its full brightness when there is motion detected and will dim down automatically to 20% after 30 Seconds of no motion detection.
4-6 Meter (Radius)
1800
Square: 167x197mm Round: 167mm
Polycarbonate
150 Im / W
6500K, 4000K
35000 Hours
IP 20
1 Year
The Tulip Plus elegantly blends sleek design and advanced technology in a surface-mounted light that does more than just illuminate. This smart fixture features a motion sensor that optimizes energy use by lighting up fully when needed and dimming to conserve power when it’s not. Crafted for durability with a polycarbonate housing, it offers both visual comfort and robust protection against elements. Ideal for various settings, the Tulip Plus enhances spaces with intelligent lighting, ensuring both efficiency and longevity.
Fitting Type |
Surface Mount |
Operating Voltage and Frequenc |
175-275V/ 50 Hz |
Current and Frequency |
23OV, 79,5mA To L,230V 17.7mA/ 50 Hz |
Input Wattage Rating |
12W@FULL / 2.4W@DIM |
Functions |
LED light will be at its full brightness when
there is motion detected and will dim down
automatically to 20% after 30 Seconds of no
motion detection. |
Microwave Sensor Range |
4-6 Meter (Radius) |
Lumens |
1200 |
Housing Dimensions |
Square: 144 x 144MM Round: 144MM |
Housing and diffuser type |
Polycarbonate |
LED efficacy |
150 lm/w |
CCT |
6500K, 4000K |
Lifespan |
35000 Hours |
IP Grade |
IP 20 |
Warranty |
1 Year |
Adjust the sensor's detection range from 2m to 16m by turning the reach knob. Turn it fully left for minimum range and fully right for maximum. Set based on location needs.
Choose how long the light stays ON (10 seconds to 12 minutes). Movement restarts the timer. Use the shortest time during setup and walk test for accurate adjustment.
Set light sensitivity from 2 to 2000 lux. Fully left = night-only mode (2 lux), fully right = day mode. Turn fully right during testing in daylight, then adjust per requirement.
Fitting Type |
Surface Mount |
Operating Voltage and Frequenc |
175-275V/ 50 Hz |
Current and Frequency |
23OV, 79,5mA To L,230V 17.7mA/ 50 Hz |
Input Wattage Rating |
12W@FULL / 2.4W@DIM |
Functions |
LED light will be at its full brightness when
there is motion detected and will dim down
automatically to 20% after 30 Seconds of no
motion detection. |
Microwave Sensor Range |
4-6 Meter (Radius) |
Lumens |
1200 |
Housing Dimensions |
Square: 144 x 144MM Round: 144MM |
Housing and diffuser type |
Polycarbonate |
LED efficacy |
150 lm/w |
CCT |
6500K, 4000K |
Lifespan |
35000 Hours |
IP Grade |
IP 20 |
Warranty |
1 Year |
Join thousands of satisfied customers who have already upgraded to TULIP PLUS Surface Mount. Get started with a free consultation or order your units today.
Discover the simple yet effective way NANO 16 transforms your space
Emits 5.8GHz microwaves with <0.2mW power, ensuring precise detection.
Detects movement (0.6–1.5m/s) within 360° range, adjustable 2–16m.
Activates lights (≤800W incandescent / 300W LED) with 10s–12min delay.
A microwave motion sensor works by emitting high-frequency waves and detecting changes in the reflected signal. When motion occurs within the microwave sensor range, the reflection shifts, triggering a response. Unlike passive sensors, microwave sensors actively scan their surroundings, making them ideal for detecting subtle movement, even through walls or glass.
Advanced technology meets practical design for superior motion detection
Advanced 5.8 GHz technology for reliable motion detection through walls and doors
Comprehensive coverage for peace of mind
Smart power management reduces consumption
Designed for indoor environments
Adjustable light sensitivity
Warranty
Microwave Sensor Range
Operating Voltage
Tulip Plus 12W (Surface Mount) uses a microwave sensor to deliver smart lighting—full brightness when motion is detected, and automatic dimming to 20% after 30 seconds with no motion. Ideal for spaces where you want comfort + energy saving without manual switching.
Bright when someone walks in, then automatically dims when the area is inactive.
Improves visibility during movement and reduces brightness when no one is using the stairs.
Keeps shared spaces comfortably lit on demand, while reducing power use during idle time.
Responsive lighting for occasional-use areas—no need to keep lights at full output all the time.
Reliable emergency lighting for underground and multi-level parking facilities, ensuring safety in low-light conditions.
Experience intuitive control with TULIP PLUS Surface Mount advanced features designed for modern living
The hold time is set to 30 seconds, and the Lux level is set to 300. The light turns on when movement is detected and turns off after people leave, specifically at night. Applications include corridors and staircases.
With sufficient daylight (>300 Lux), the light remains off even when motion is detected.
With insufficient daylight (<300 Lux), the light turns on when motion is detected.
After the last detection and the elapse of the current hold time (30 seconds), the light turns off.
The daylight threshold is set to 2000 lux to disable the light. It turns on when movement is detected, and after people leave, the light turns off once the hold time of 30 seconds has elapsed. Applications include dimly lit areas such as basement parking and underpasses.
When motion is detected, the sensor will switch the light on to 100% brightness.
After people leave the detection area, the light remains at 100% brightness for the duration of the hold time.
After the last detection and the elapse of the current hold time (30 seconds), the light turns off.
Automatically adjusts between day and night modes based on ambient light levels, ensuring optimal performance in any lighting condition.
Fine-tune sensitivity from 2m to 16m to perfectly match your space requirements and prevent false triggers.
Smart motion detection resets the timer with new movement, ensuring lights stay on while the area is in use.
Customize the delay from 10 seconds to 12 minutes after the last detected motion to suit your specific needs.
Find answers to common questions about Tulip Plus 12W Surface Mount
A surface-mount microwave sensor LED light (2-in-1 round/square design) that runs full bright on motion and dims to 20% after 30 seconds of no motion.
4–6 meters (radius).
12W @ FULL and 2.4W @ DIM.
1200 lumens (LED efficacy listed as 150 lm/W).
6500K and 4000K.
Yes. Driver functions list: ON/OFF mode (ON with motion, OFF after 30 sec no motion) and DIM mode (full bright with motion, reduces to 20% after 30 sec no motion).
