Parking Areas
Reliable emergency lighting for underground and multi-level parking facilities, ensuring safety in low-light conditions.

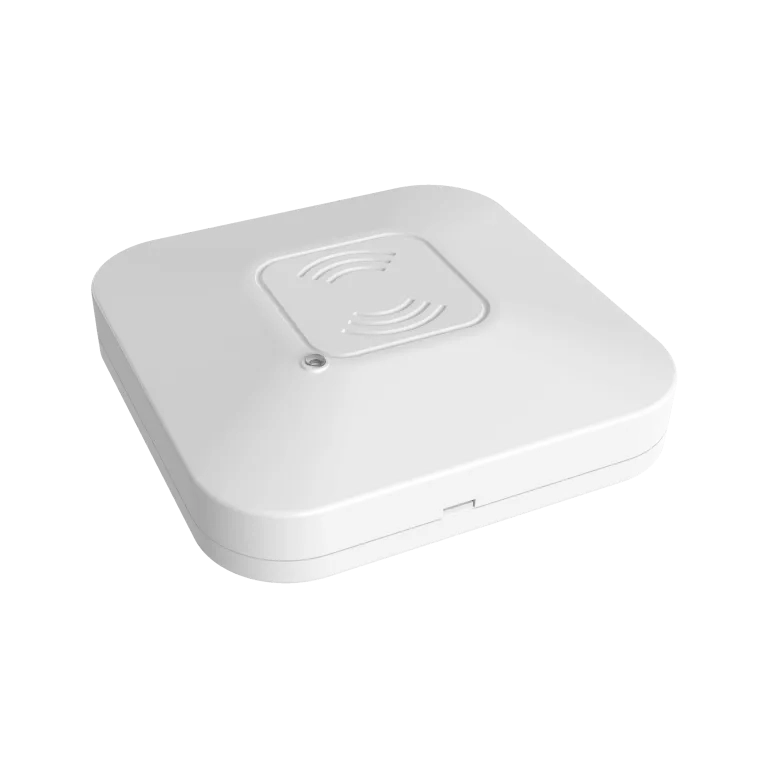

The Nano 16 Microwave Motion Sensor offers smart, energy-saving lighting control with high-frequency 5.8 GHz motion detection. It provides a 360° detection range, adjustable up to 16 meters, making it ideal for spaces of all sizes. With customizable sensitivity, time delay, and Lux control settings, the Nano 16 adapts to your environment, ensuring lights activate only when needed. Reliable and easy to install, this sensor can detect motion through doors and walls, perfect for commercial, residential, and public spaces. Upgrade to the Nano 16 for efficient, automated, and intelligent lighting solutions!
220-240V/AC
50Hz
5.8Ghz CW Radar, ISM Band
<0.2mW
Min. 10Sec, Max. 12Min
800W (Incandescent), 300W (LED Load)
360°
1.5-3.5m
3-2000LUX
Approx. 0.9W
0.6-1.5m/s
4
2-16m (radius), Adjustable
The Nano 16 Microwave Motion Sensor offers 360° detection up to 16 m with 5.8 GHz high-frequency sensing. It features adjustable sensitivity, time delay, and Lux settings for smart, energy-saving lighting. Easy to install, it detects motion even through doors and walls—perfect for any space.
Power Source |
220-240V/AC |
HF System |
5.8Ghz CW Radar, ISM Band |
Time Delay |
Min. 10Sec, Max. 12Min |
Detection Range |
360° |
Ambient Light |
3-2000LUX |
Detection Motion Speed |
0.6-1.5m/s |
Power Frequency |
50Hz |
Transmission Power |
<0.2mW |
Rated Load |
800W (Incandescent), 300W (LED Load) |
Install Height |
1.5-3.5m |
Power Consumption |
Approx. 0.9W |
Detection Distance |
2-16m (radius), Adjustable |
Adjust the sensor's detection range from 2m to 16m by turning the reach knob. Turn it fully left for minimum range and fully right for maximum. Set based on location needs.
Choose how long the light stays ON (10 seconds to 12 minutes). Movement restarts the timer. Use the shortest time during setup and walk test for accurate adjustment.
Set light sensitivity from 2 to 2000 lux. Fully left = night-only mode (2 lux), fully right = day mode. Turn fully right during testing in daylight, then adjust per requirement.
Join thousands of satisfied customers who have already upgraded to NANO 16. Get started with a free consultation or order your units today.
Discover the simple yet effective way NANO 16 transforms your space
Emits 5.8GHz microwaves with <0.2mW power, ensuring precise detection.
Detects movement (0.6–1.5m/s) within 360° range, adjustable 2–16m.
Activates lights (≤800W incandescent / 300W LED) with 10s–12min delay.
A microwave motion sensor works by emitting high-frequency waves and detecting changes in the reflected signal. When motion occurs within the microwave sensor range, the reflection shifts, triggering a response. Unlike passive sensors, microwave sensors actively scan their surroundings, making them ideal for detecting subtle movement, even through walls or glass.
Advanced technology meets practical design for superior motion detection
Advanced 5.8 GHz technology for reliable motion detection through walls and doors
Comprehensive coverage for peace of mind
Smart power management reduces consumption
Designed for indoor environments
Adjustable light sensitivity
Delay Time
Detection Range
Install Height
Discover how the NANO 16 Microwave Motion Sensor transforms lighting control across diverse environments with superior detection and energy efficiency
Smart lighting in common areas of residential & commercial towers improves energy savings and safety with automated control.
Automated lighting in patient corridors and service zones supports hygiene protocols and operational efficiency.
Seamless lighting experience for guests in hallways, lobbies, and service areas with intelligent automation.
Motion detection ensures well-lit zones only when needed, cutting power consumption in unused zones.
Reliable emergency lighting for underground and multi-level parking facilities, ensuring safety in low-light conditions.
Experience intuitive control with Nano 16's advanced features designed for modern living
The hold time is set to 30 seconds, and the Lux level is set to 300. The light turns on when movement is detected and turns off after people leave, specifically at night. Applications include corridors and staircases.
With sufficient daylight (>300 Lux), the light remains off even when motion is detected.
With insufficient daylight (<300 Lux), the light turns on when motion is detected.
After the last detection and the elapse of the current hold time (30 seconds), the light turns off.
The daylight threshold is set to 2000 lux to disable the light. It turns on when movement is detected, and after people leave, the light turns off once the hold time of 30 seconds has elapsed. Applications include dimly lit areas such as basement parking and underpasses.
When motion is detected, the sensor will switch the light on to 100% brightness.
After people leave the detection area, the light remains at 100% brightness for the duration of the hold time.
After the last detection and the elapse of the current hold time (30 seconds), the light turns off.
Automatically adjusts between day and night modes based on ambient light levels, ensuring optimal performance in any lighting condition.
Fine-tune sensitivity from 2m to 16m to perfectly match your space requirements and prevent false triggers.
Smart motion detection resets the timer with new movement, ensuring lights stay on while the area is in use.
Customize the delay from 10 seconds to 12 minutes after the last detected motion to suit your specific needs.
Find answers to common questions about Nano 16
Nano 16 is a compact microwave motion sensor by Sensinova that uses a high-frequency 5.8GHz signal to detect motion. It is designed for automatic lighting control and energy saving, turning lights ON when motion is detected and OFF after a set period.
The detection range of Nano 16 is up to 8 meters (adjustable), depending on the installation height and environment.
Yes, Nano 16 is compatible with all types of lights including LED, CFL, and incandescent bulbs.
Yes, Nano 16 is versatile and can be installed on both walls and ceilings, depending on the application and required detection coverage.
Yes, Nano 16 offers adjustable settings for:
These settings help customize the sensor’s performance as per the user’s needs.
Nano 16 is ideal for indoor applications such as:
Anywhere automatic lighting is required for safety and energy saving.
